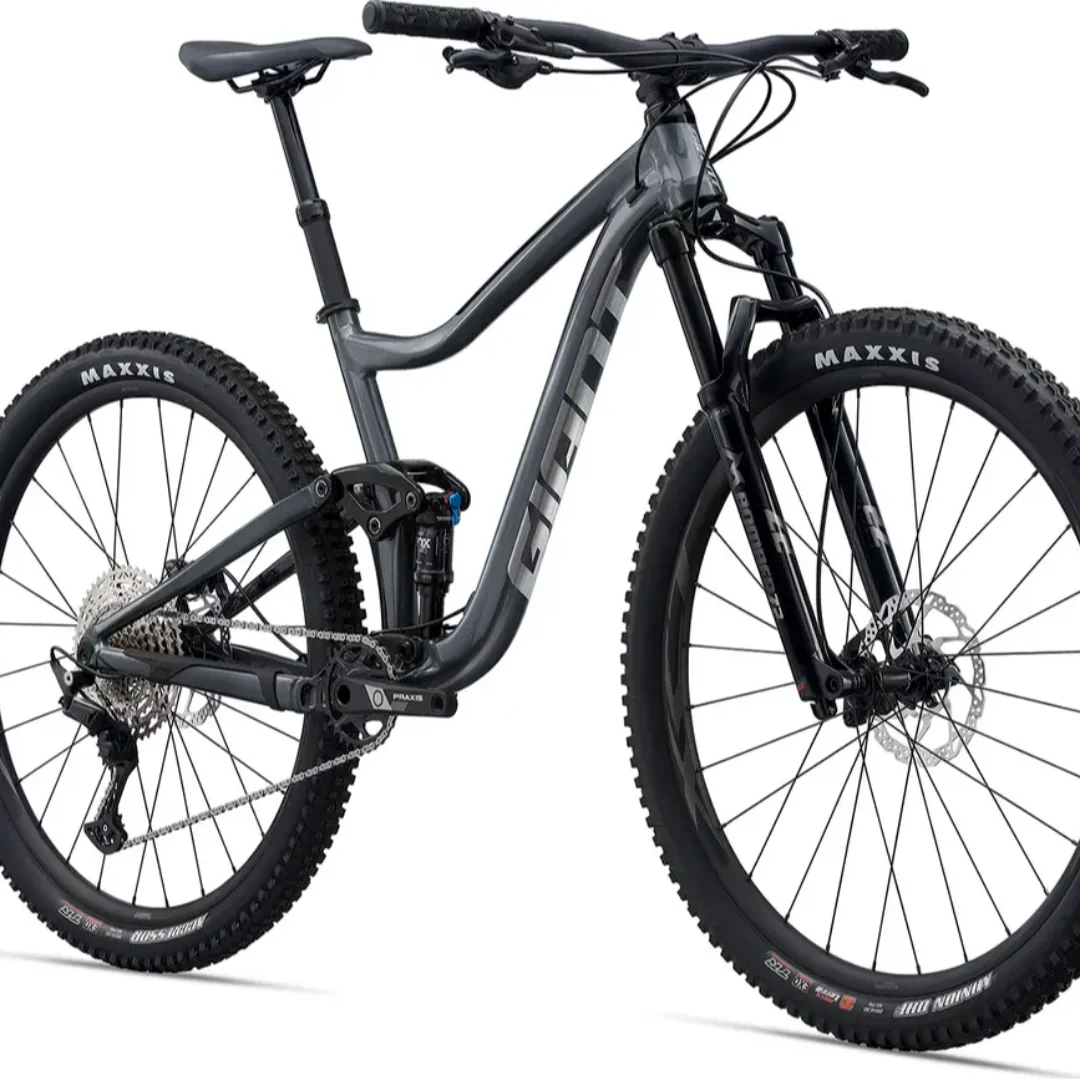

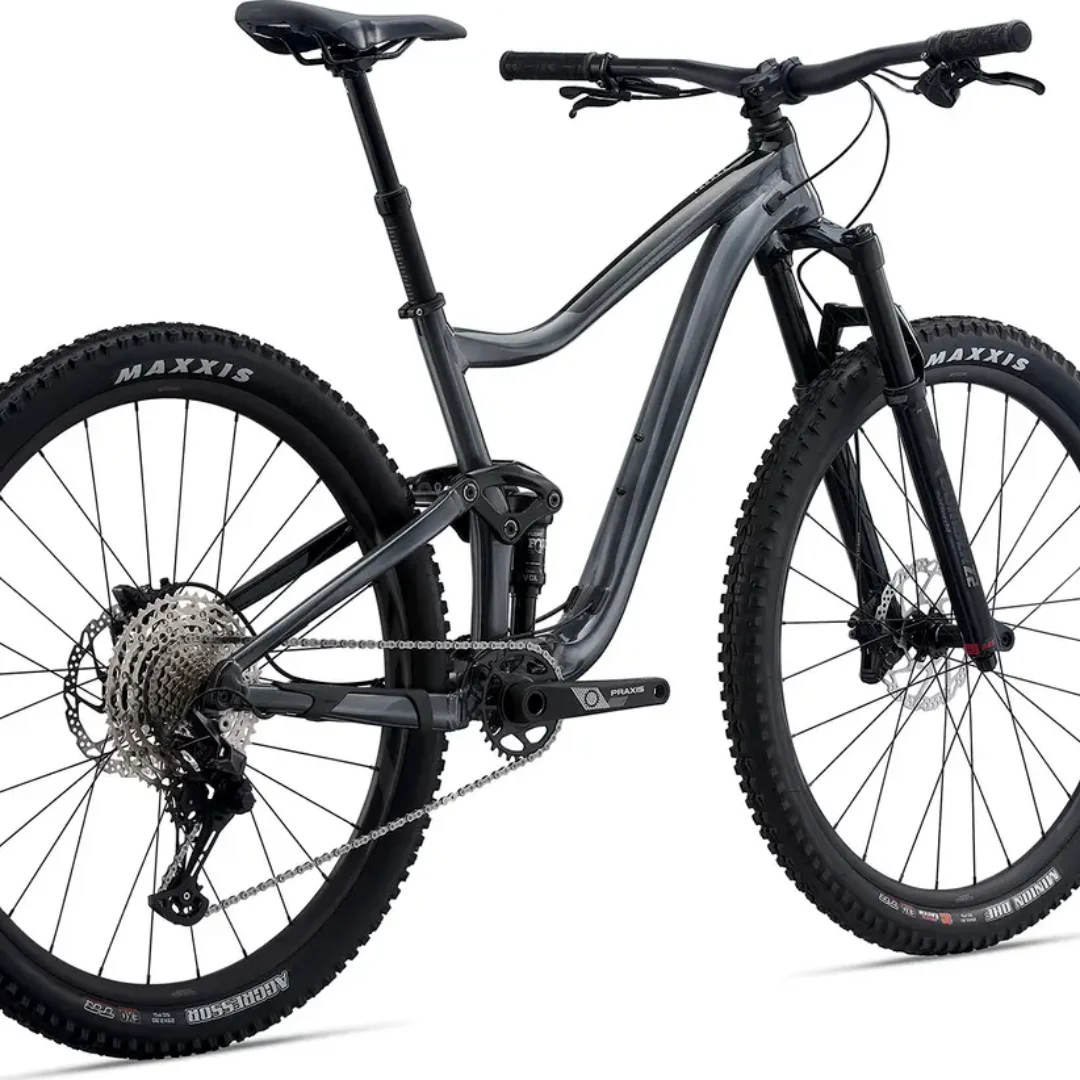

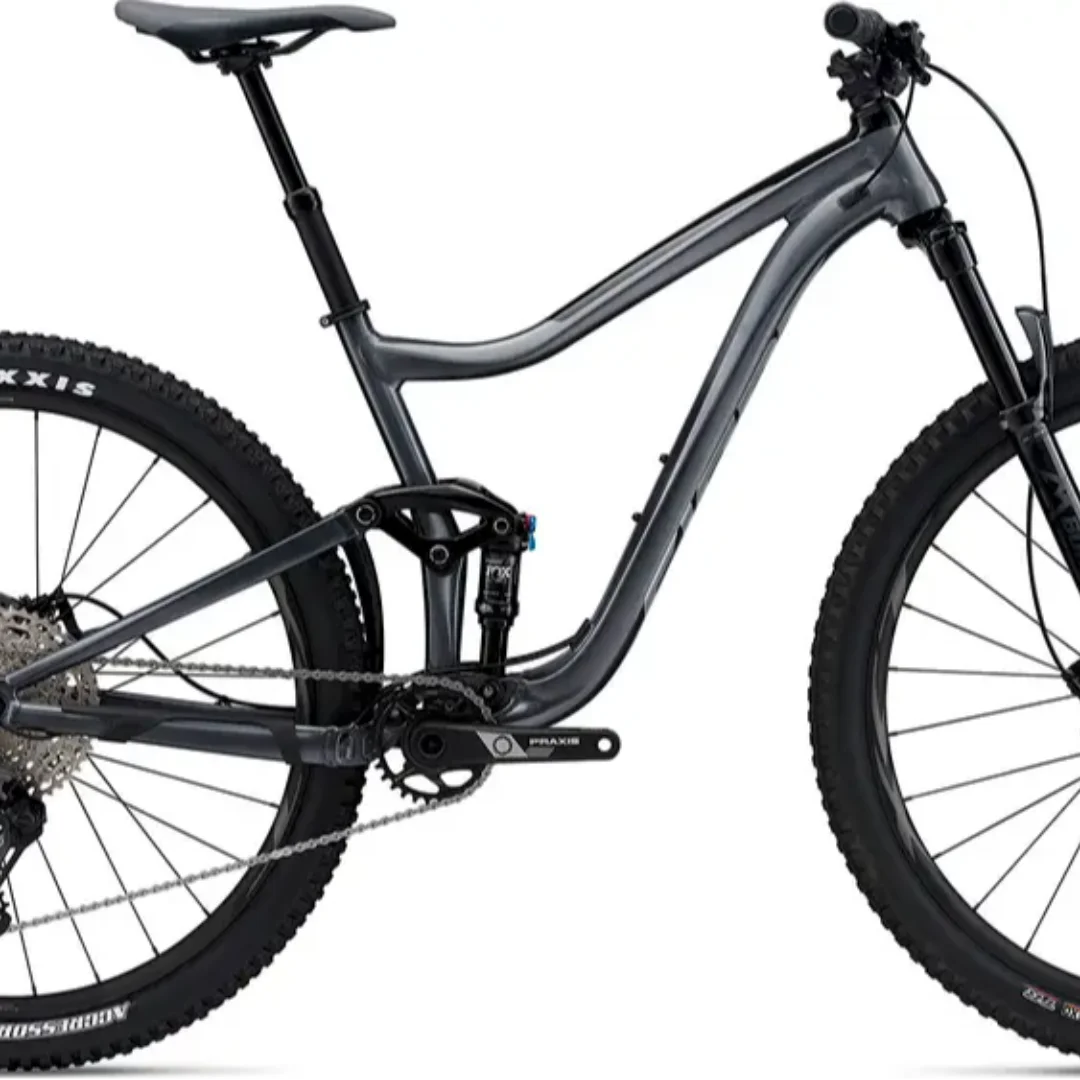

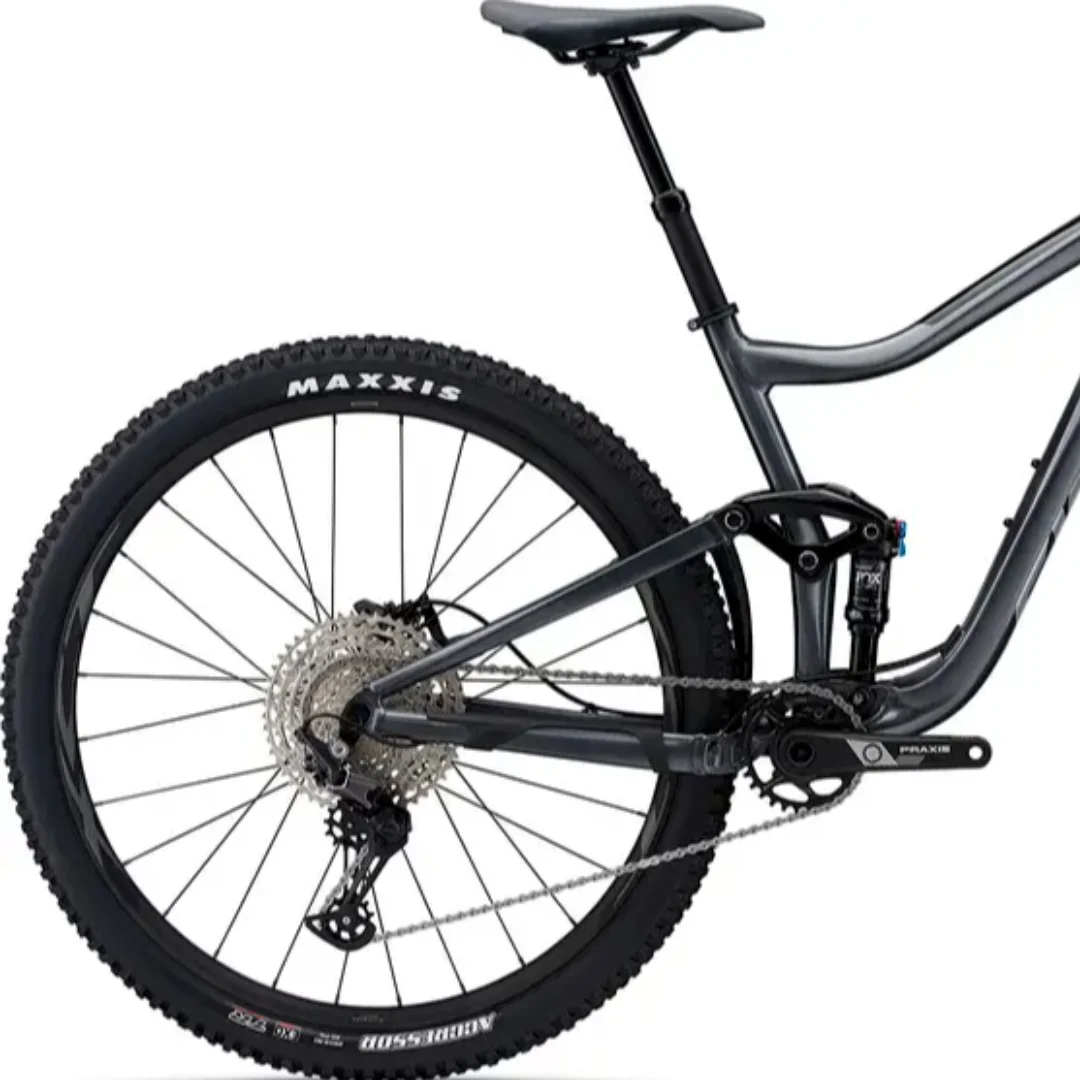

Giant Trance 29 3

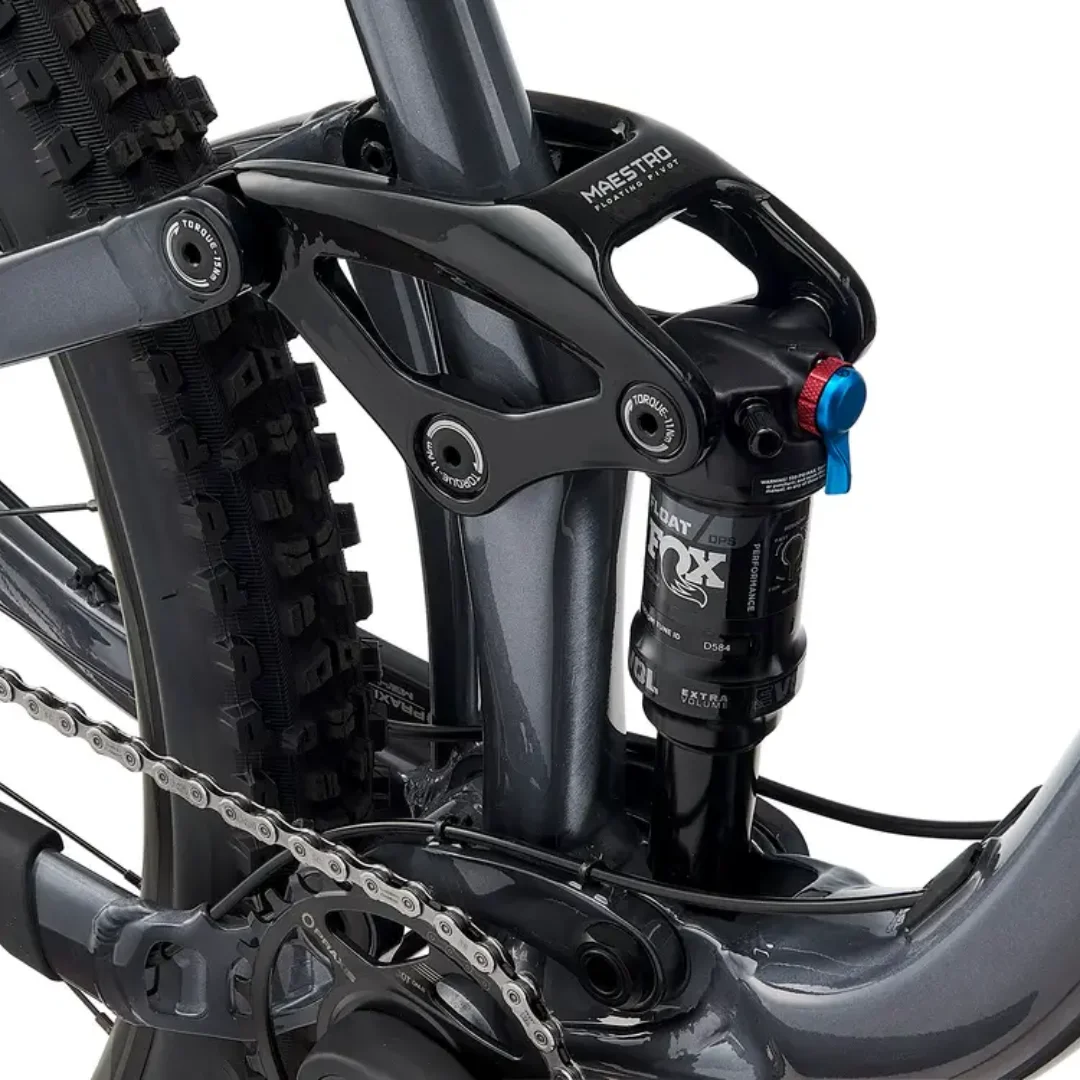

This versatile trail machine is built on a lightweight, stiff and super-strong ALUXX SL frameset that blends our latest Maestro suspension technology with adjustable frame geometry. The Advanced Forged Composite rocker arm has a flip chip that allows you to adjust frame geometry. Choose steeper or slacker head tube/seat tube angles and either a 35mm or 45mm bottom bracket drop to fine-tune the handling for your riding style and terrain. It’s designed around a 130mm travel suspension fork, and the overall geometry has been tuned to maximize its performance on rugged trails.

Specs

Build

Frame: ALUXX SL-Grade Aluminum, 115mm Maestro suspension

Color: Black Ti / Black

Fork: Marzocchi Z2, 130mm, GRIP damper, Boost 15x110 Kabolt, 44mm offset, custom tuned for Giant; Travel: 130mm; Spring Type: Air

Shock: Fox Float DPS Performance, 165/42.5, custom tuned for Giant; Travel: 115mm

Bottom Bracket: Praxis, press fit

Stem: Giant Contact SL 35

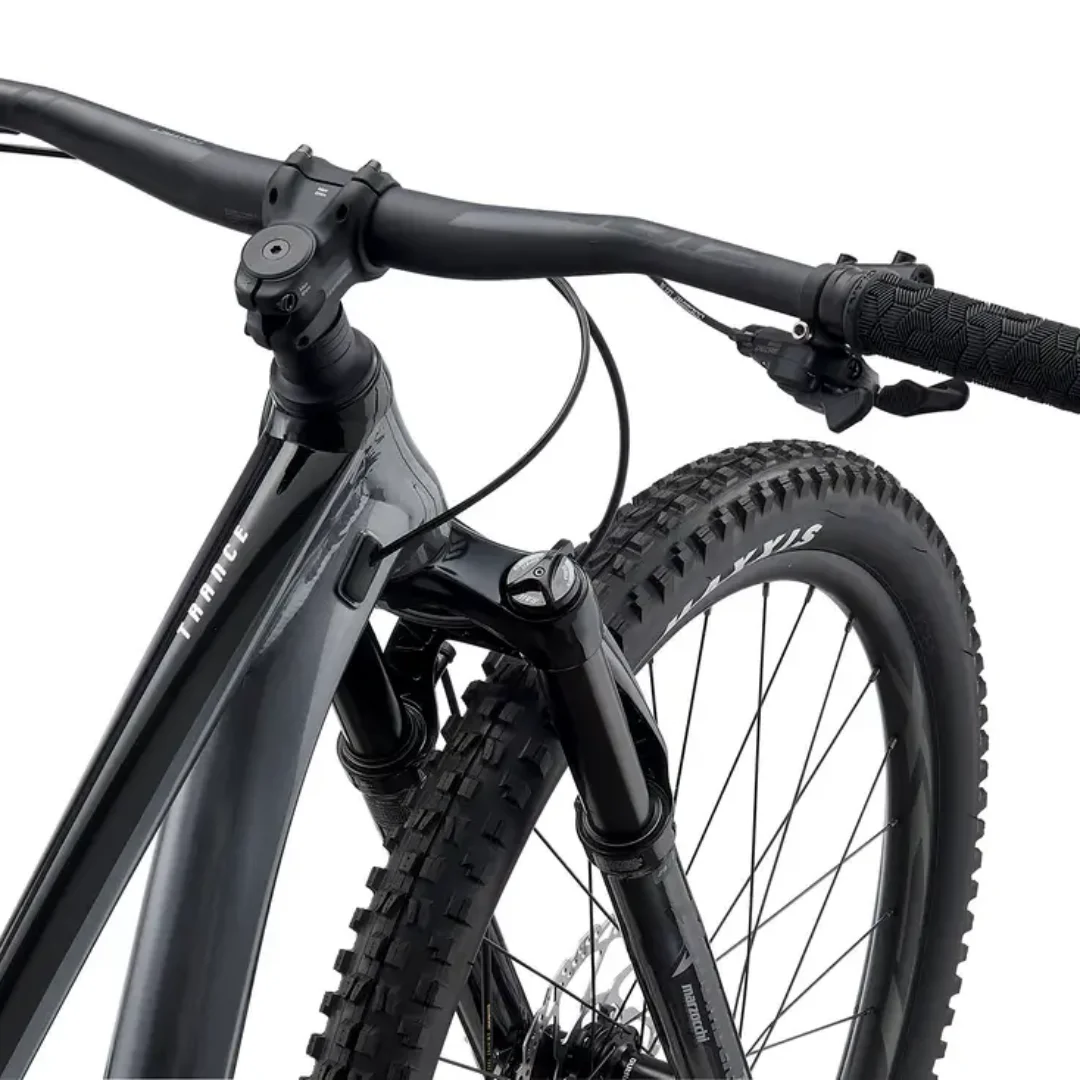

Handlebar: Giant Contact Trail, 35

Saddle: Giant Romero

Seatpost: Giant Contact Switch dropper post with remote, 30.9

Pedals: N/A

Groupset

Rear Derailleur; Shimano Deore, Shadow+

Front Derailleur: N/A

Crank: Praxis Cadet Boost, 30t

Shifters: Shimano Deore

Cassette: Shimano Deore, 12-speed, 10x51

Chain: Shimano Deore

Brakes: Shimano [F] MT420 [R] MT410 hydraulic 4-piston, 180mm

Type: Hydraulic Disc

Brake Levers: Shimano MT401

Wheels

Rims: Giant XCT 29” alloy

Spokes: Sapim

Front Hub: Giant Performance Tracker, [F] Boost 15x110mm [R] Boost 12x148mm, sealed bearing

Rear Hub: Giant Performance Tracker, [F] Boost 15x110mm [R] Boost 12x148mm, sealed bearing

Tires: [F] Maxxis Minion DHF, tubeless, 29x2.3, 3C, EXO, TR [R] Maxxis Aggressor, tubeless, 29x2.3, 3C, EXO, TR

Product specifications, colors, and availability can be subject to change without prior notification. For availability and prices, please contact us.
